Oil-filled AMDT
Overview

This series of amorphous alloy transformer lines combined with the introduction of American Superconductor Energy (ASEC) launched the latest fifth generation of amorphous alloy transformer products (GENE.5LEVEL) manufacturing energy-efficient amorphous alloy oil-immersed transformer. It has signlificant energy savings, energy-saving rate of no-load losses of up to 80% or more. Products with fully sealed structure design, the use of a number of special patented technology, safe and reliable operation, and maintenance-free for life.

  • Execution standard
  • Model
  • Performance
  • Parameters
  • Appearance
    • GB1094.1～2-1996 power transformer
    • GB1094.3,.5-2003 power transformer
    • JB-T10318-2002 Technical parameters and requirements of oil-immersed non-crystallized alloy iron core power distribution transformer

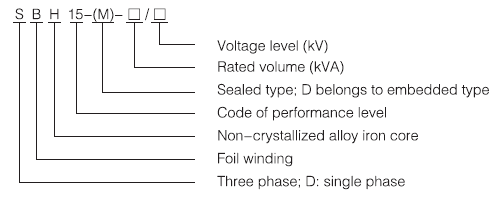

  • SBH15-M/10、SBH15-M/20

    • Non-crystallized alloy iron core: Iron core is winded by non-crystallized alloy belt and four-frame and five-pillar structure is established. The lap of each non-crystallized alloy iron core is overlapped by the latest “semi-layer distribution” in order to guarantee the optimization of overall idled consumption index of products and small and stable property of idled current.
    • Winding: Low-voltage winding is in the copper foil rectangle cylinder structure; high-voltage winding is in the multi-layer structure; during the design and manufacturing, reactance height of low-voltage winding is constant to be higher than the reactance height of high-voltage winding in order to remove the axial power of short circuit in the winding and greatly upgrade the short circuit resistance of products. Terminal insulation shifting design exclusive to Tuff-Flex insulation system is adopted for the high-voltage winding to greatly upgrade the lightning impact resistance of product.
    • Body: Maglev circult suspended magnetic ring patent technology is adopted in the assembly; exclusive non-crystallized iron core positioning technology has enabled non-crystallized iron core to enjoy the best stress status in the storage, transportation and normal operation; therefore, it can guarantee long-term stability and reliability of energy-saving features.
  • Technical parameters of SBH15-M/10 series of non-crystallized alloy power distribution transformer
    Rated volume(kVA) Voltage combination Conn. Symb No-load loss (W) On-load loss 75℃ (W) Excit. Curr (%) Impedance (%) Ontolog outline dime
    L×W×H (mm)     		Foundation pitch
    A×B (mm)     		Weight (kg)
    High voltage (kV) Branching (%) Low-voltage (kV)
    30 6
    6.3
    6.6
    10
    10.5
    11     		±2×2.5% ±5% 0.4 Dyn11 33 630 1.5 4 945×600×852 400×550 336
    50 43 910 1.2 4 105 6×600×942 400×550 465
    63 50 1090 1.1 4 99 6×600×902 400×550 480
    80 60 1310 1.0 4 10 71×710×956 400×550 583
    100 75 1580 0.9 4 1 143×710×1046 550×550 713
    125 85 1890 0.8 4 1 213×710×1026 550×550 807
    160 100 2310 0.6 4 1338×870×1087 660×720 982
    200 120 2730 0.6 4 1133×1028×1057 660×820 1090
    250 140 3200 0.6 4 1243×1033×1052 660×820 1235
    315 170 3830 0.5 4 1280×1020×1095 660×820 1510
    400 200 4520 0.5 4 1313×1120×1139 660×820 1613
    500 240 5410 0.5 4 1380×1120×1195 660×820 1890
    630 320 6200 0.3 4.5 1400×1333×1235 820×1070 2243
    800 380 7500 0.3 4.5 1805×1413×1320 820×1070 2653
    1000 450 10300 0.3 4.5 1878×1348×1378 820×1070 2941
    1250 530 12000 0.2 4.5 1882×1347×1590 820×1070 3678
    1600 630 14500 0.2 4.5 2120×1237×1760 820×1070 4464
    2000 750 18300 0.2 5 2180×1620×1850 820×1070 5370
    2500 900 21200 0.2 5 2262×1552×2086 820×1070 6650

    Technical parameters of SBH15-M/20 series of non-crystallized alloy power distribution transformer
    Rated volume(kVA) Voltage combination Conn. Symb No-load loss (W) On-load loss 75℃ (W) Excit. Curr (%) Impedance (%) Ontolog outline dime
    L×W×H (mm)     		Foundation pitch
    A×B (mm)     		Weight (kg)
    High voltage (kV) Branching (%) Low voltage (kV)
    50 20 ±2×2.5% ±5% 0.4 Dyn11 55 1010 1.2 5.5 1186×685×967 400×550 550
    63 65 1200 1.1 5.5 1246×685×967 400×550 580
    80 75 1440 1.0 5.5 1261×795×981 400×660 680
    100 90 1730 0.9 5.5 1333×795×1071 400×660 810
    125 100 2080 0.8 5.5 1403×795×1051 400×660 910
    160 120 2540 0.6 5.5 1528×955×1112 550×820 1100
    200 145 3000 0.6 5.5 1323×1113×1082 550×820 1210
    250 165 3520 0.6 5.5 1433×1118×1221 660×820 1370
    315 200 4210 0.5 5.5 1470×1105×1264 660×820 1680
    400 240 4970 0.5 5.5 1503×1165×1308 660×1070 1820
    500 290 5940 0.5 5.5 1570×1195×1364 660×1070 2185
    630 370 6820 0.3 6 1590×1418×1404 820×1070 2550
    800 450 8250 0.3 6 1995×1498×1489 820×1070 2960
    1000 530 11330 0.3 6 2068×1433×1547 820×1070 3260
    1250 620 13200 0.2 6 2072×1432×1759 820×1070 3990
    1600 750 15950 0.2 6 2310×1322×1929 820×1070 4780
    2000 900 19140 0.2 6 2370×1705×2019 820×1070 6000
    2500 1080 22220 0.2 6 2452×1637×2255 820×1070 7280
